This Traditional Ranch Duplex plan delivers two comfortable, single-story units under one roof — each about 1,440 sq ft, for a combined total around 2,880 sq ft. Each unit provides 2 bedrooms, 2 full bathrooms, and its own attached two-car garage. The layout emphasizes simplicity, privacy, and efficient use of space — ideal for duplex living, shared ownership, or rental setups. 1
Duplex Layout & Building Design — Two Homes, One Structure

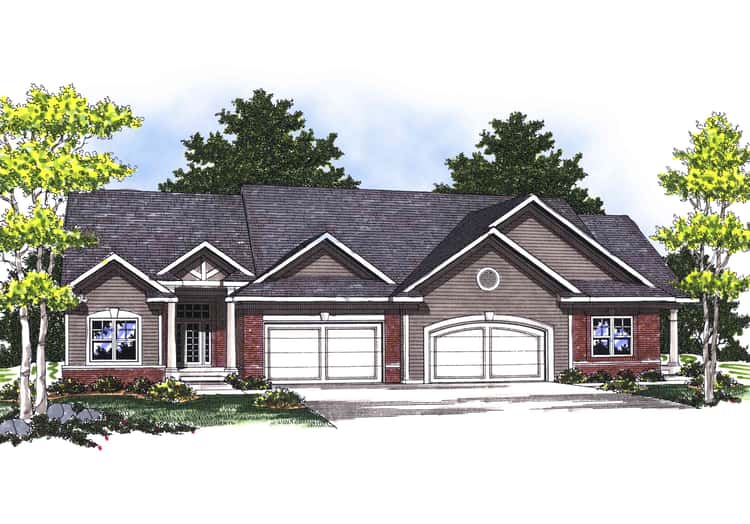

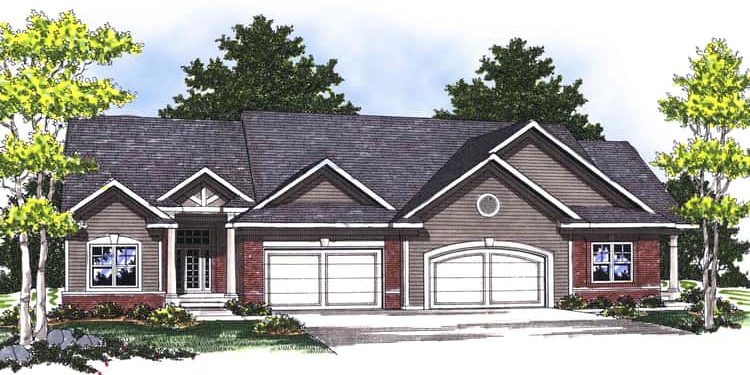

The building houses two side-by-side ranch-style units. Each unit is mirror-image (or close to) but with subtle differences, giving each its own sense of identity. 2

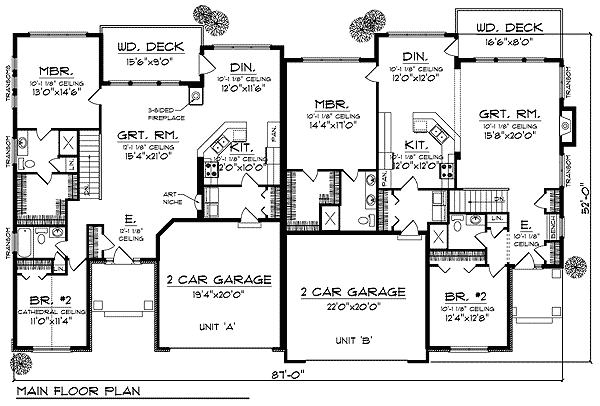

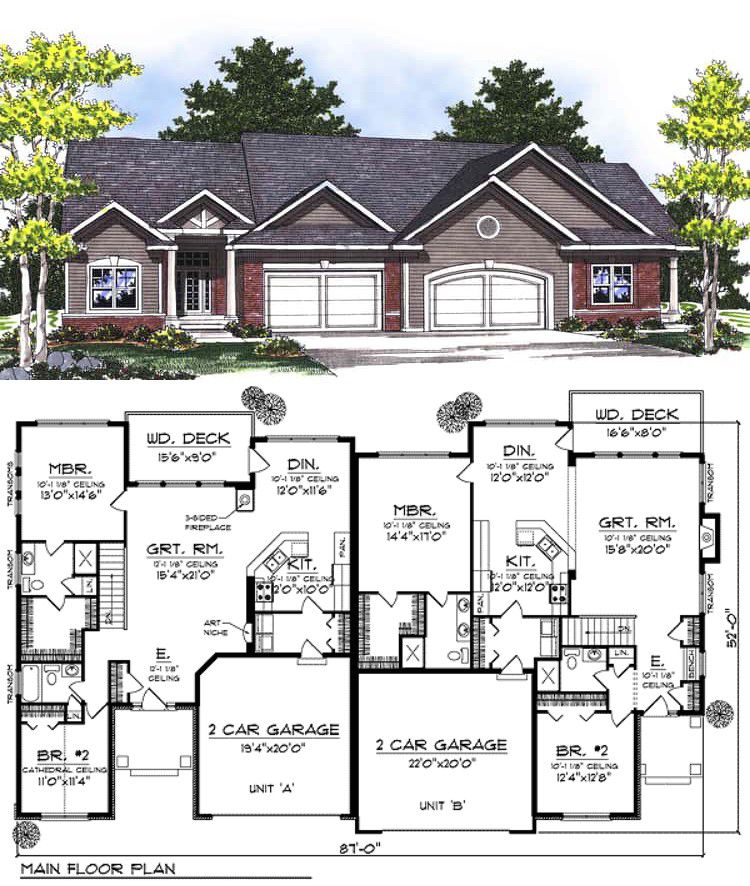

Overall, each unit footprint measures around 43′ 6″ wide × 52′ deep (not including garage), with a height up to about 26′ 4″. 3
Unit Interior — Open Living, Smart Flow & Practical Simplicity
Inside each unit, you’re welcomed by an open-plan layout: the kitchen flows directly into the great room and dining area — making efficient use of space while keeping life easy and connected. 4
The layout supports modern everyday living or rental functionality: compact but complete, with all essentials on one floor, minimal shared circulation spaces, and straightforward room organization. 5
Bedrooms & Privacy — Two-Bedroom Units Designed for Comfort
Each unit includes two bedrooms and two bathrooms — a practical, compact configuration suited for small families, couples, roommates, or renters. 6
Every master bedroom features tall ceilings and a walk-in closet, giving a sense of space and comfort despite the unit’s modest footprint. 7
Garage & Utility Spaces — Convenience Built In
Each unit includes its own attached, two-car garage (~402 sq ft), offering secure parking and storage space — a big plus for duplex living. 8
Given the compact, single-level layout and separate garages, the design balances shared structure with private, autonomous living spaces — ideal for long-term comfort and convenience. 9
Who This Duplex Is Great For — Flexibility & Smart Housing Solutions
- Dual households: Two families (or two generations) can live side-by-side under one roof, sharing structural cost but keeping privacy.
- Rental & investment: Each unit is independent, making this plan attractive for renting one or both units while maintaining easy maintenance.
- Simplified living: Single-level layout, compact footprint, and efficient layout make this plan ideal for those wanting easy upkeep and practicality.
- Affordability & build efficiency: Shared walls and a single footprint help reduce construction and maintenance costs compared to two separate houses.
Plan & Specs Summary
- Units: 2 (side-by-side duplex) 10
- Per-Unit Heated Area: ~1,440 sq ft 11
- Total Heated Area: ~2,880 sq ft (both units) 12
- Bedrooms per Unit: 2 13
- Bathrooms per Unit: 2 full baths 14
- Garage per Unit: Attached 2-car (~402 sq ft) 15
- Stories: Single-story per unit / one-level duplex 16
- Footprint (per unit): ~43′ 6″ wide × ~52′ deep; height ~26′ 4″ 17
- Key Features: Open-plan living, two-bedroom/2-bath layout, walk-in closets in master bedrooms, attached 2-car garages, compact efficient design, and flexibility for duplex or shared living. 18
Estimated U.S. Build Cost (USD)
Assuming modest to mid-range finishes and typical residential construction costs between $140–$200 per sq ft, building a total of ~2,880 sq ft could cost roughly **$403,000–$576,000 USD** (excluding land, permits, site prep, utilities, and regional cost variations). Given shared structure and efficient design, the cost per unit tends to be lower than building two separate houses.
Why This Duplex Plan Stands Out — Simple, Sensible, and Versatile
This Traditional Ranch Duplex offers a highly practical, cost-effective way to provide two independent homes under a single roof. With modest size, open layout, separate garages, and efficient design, it’s ideal for multi-family households, rental setups, or any situation needing duplex functionality without complexity. If you want comfort, privacy, economy and flexibility in one balanced package — this plan delivers it.
