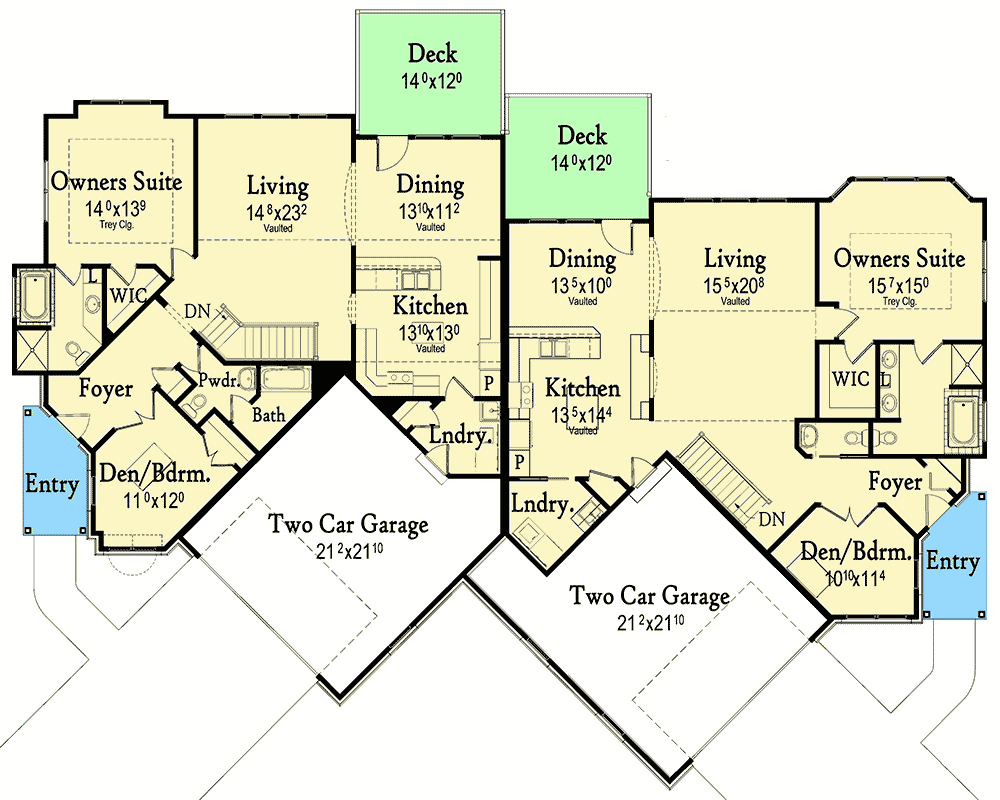

This thoughtfully designed duplex plan offers a combined **~4,978 sq ft** of living area across two mirror-image units — each optimized for modern comfort and flexible family living. Each side includes about **2,489–2,498 sq ft** of heated space with **3–4 bedrooms**, **2 full baths + 1 half bath**, and an **attached angled garage (~497 sq ft)**. Its clever angled layout provides appealing curb presence and comfortable indoor-outdoor living on both sides. 0

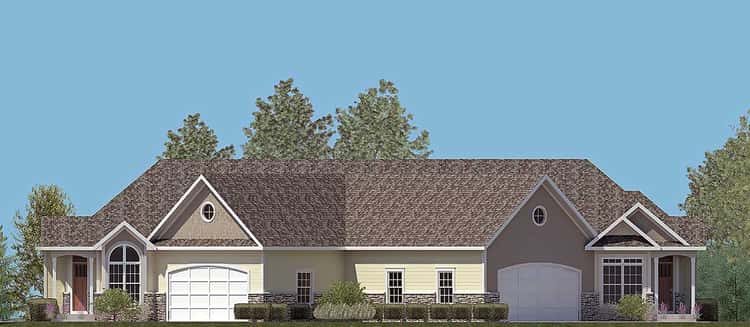

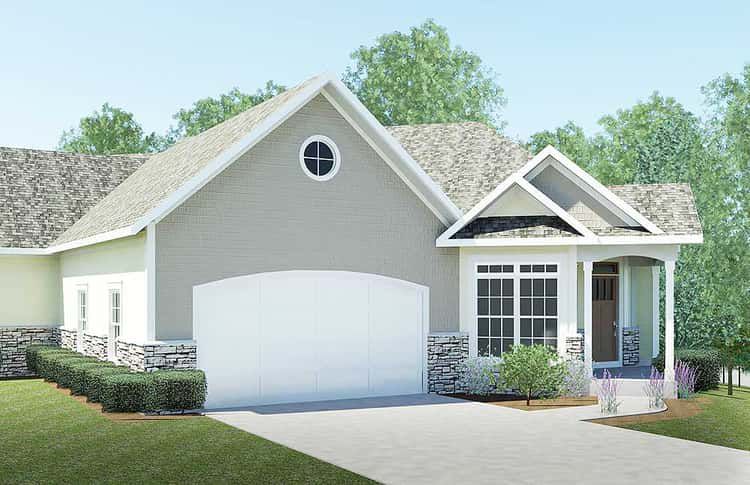

Exterior & Architectural Curb Appeal
The exterior elevates duplex living with an **angled garage** design that adds visual interest and directional movement to the façade. 0 Covered entries lead visitors (and residents) into matching **angled foyers**, which instantly set this plan apart from typical duplex layouts by delivering welcoming, purposeful transitions from outside into the home. 0 The balanced proportions and clean rooflines make it suitable for a range of neighborhood and lot types. 0 0

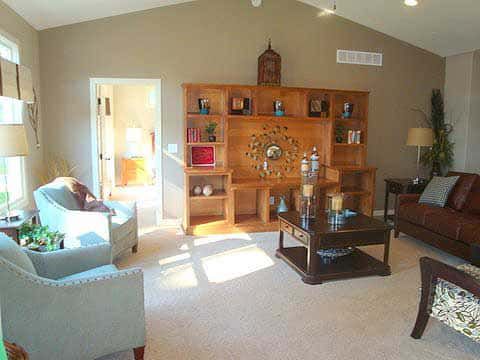

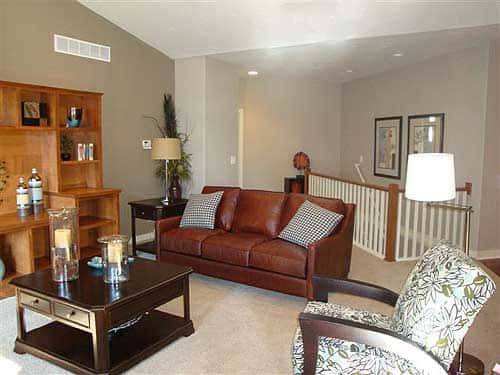

Entry & Vaulted Living Spaces
Stepping inside either unit, you’re greeted by an **open vaulted living room** — a central space designed to feel bright, spacious, and connected. 0 From here, sightlines extend smoothly into the kitchen and dining zones, creating a unified living experience that’s ideal for both entertaining and everyday family routines. 0 Large windows bring natural light deep into the interiors, enhancing the sense of openness. 0 1

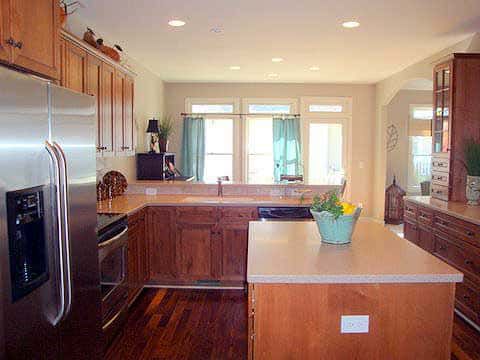

Kitchen & Dining — Connected to Outdoor Living

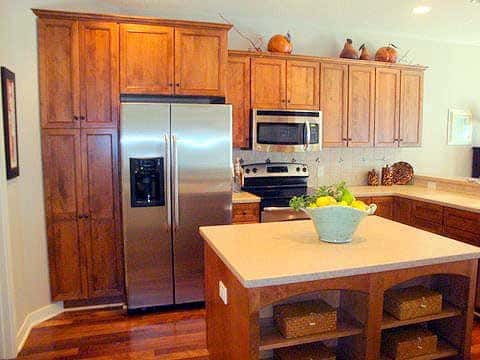

The kitchen sits open to the vaulted dining room, encouraging interaction between cooking and family/social areas. 0 A sliding patio door conveniently leads directly to a **rear deck**, making outdoor meals and summer gatherings effortless. 0 Whether it’s a weekday dinner or weekend barbecue, this indoor-outdoor flow supports casual living with ease. 0 2

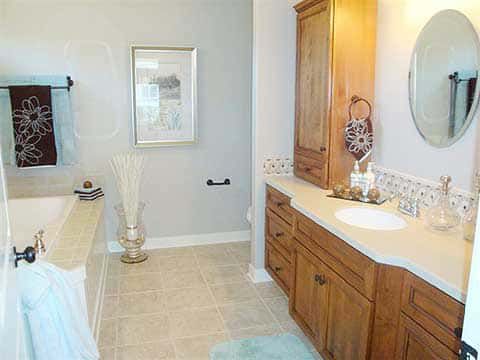

Owner’s Suite & Private Retreat
Each unit features a well-appointed owner’s suite that serves as a peaceful retreat from the rest of the home. A **tray ceiling adds architectural height and elegance**, enhancing the sense of spaciousness. 0 Nearby, a private bath provides convenience and comfort, making daily routines feel relaxed and refined. 0 3

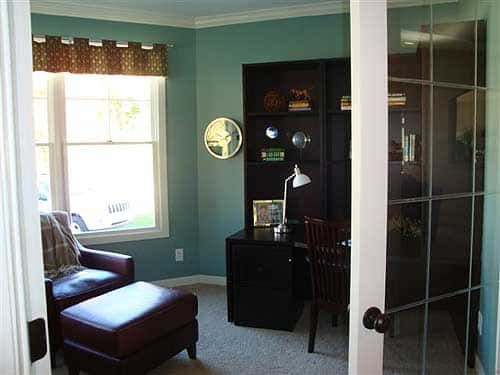

Additional Bedrooms & Den/Second Bedroom Flexibility
Beyond the primary suite, layouts include other bedrooms with plenty of space and light. A **den or optional fourth bedroom** adds flexibility, allowing each unit to accommodate a home office, hobby room, or guest space with its own full bathroom — a feature that elevates everyday living. 0 4
Finished Lower Level — Expanded Living & Storage
Both units include a **finished lower level** that broadens the livable footprint (about **~983 sq ft** for each). This level adds **two additional bedrooms, a family room, and useful storage space** — perfect for guests, teens, or entertainment zones. 0 Its design takes advantage of walkout or sloping lot opportunities, adding flexibility for varied site conditions. 0 5
Garage & Utility Spaces
Each unit’s **attached angled garage** (~497 sq ft) offers secure space for parking and gear storage. 0 Nearby laundry and mudroom areas help keep clutter and daily necessities contained, improving everyday flow. 0 Functional circulation and practical storage elevate the livability of each side. 0 6
Construction & Layout Summary
- Total Combined Heated Area: ~4,978 sq ft (both units) 0
- Heated Area per Unit: ~2,489–2,498 sq ft 0
- Bedrooms per Unit: 3–4 (flex den/office) 0
- Bathrooms per Unit: 2 Full + 1 Half 0
- Garage per Unit: Attached angled (~497 sq ft) 0
- Stories: Two levels (main + finished lower level) 0
- Ceiling Features: Vaulted living and dining rooms 0
- Outdoor Areas: Rear decks off dining/kitchen 0
- Style: Modern/Multi-Family with angled architectural accents 0
Lifestyle Highlights — Comfortable Multifamily Living
- Architectural interest: Angled garages and entry foyers create memorable curb appeal and natural flow into living spaces. 0
- Open main living: Vaulted family, dining, and kitchen areas promote light, connection, and sociability. 0
- Outdoor integration: Rear deck access strengthens indoor-outdoor living for relaxed gatherings. 0
- Adaptable bedrooms: Den or optional fourth bedroom gives flexibility for work, sleep, or hobby space. 0
- Expanded lower level: Finished lower level adds family room and extra bedrooms for guests or growing families. 0
Estimated U.S. Build Cost (USD)
Assuming typical U.S. residential construction costs for duplex units of around $150–$240 per sq ft for mid-range finishes, building the roughly **4,978 sq ft total** structure could fall in the range of **$747,000–$1,195,000 USD** (excluding land, site preparation, utilities, permits, and regional variations). Shared walls and common systems can help make multi-family construction more cost-efficient overall. 0
Why This Duplex Plan Stands Out
This “Clever Angled Design” duplex offers a smart balance of privacy and community across its two units. Vaulted living spaces, angled garages, outdoor decks, and flexible bedroom arrangements make it ideal for multi-generational living, rental opportunities, or families who want the benefits of a shared structure without sacrificing style and comfort. Practical layouts and finished lower levels extend living space while preserving daily flow and amenity.
