Exterior Design

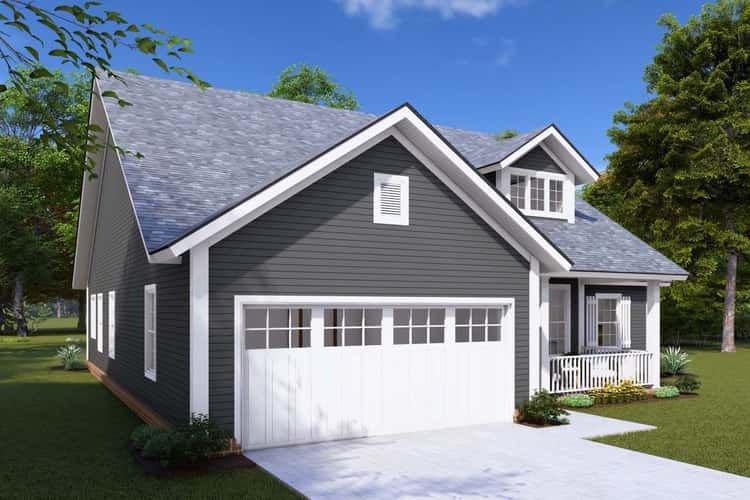

The design presents a compact yet charming traditional-style façade suited for a narrower lot. The width is 48′-0″ and depth 58′-6″, giving the home a footprint that balances presence with efficiency.
The roof pitch is steep (primary pitch 9 on 12) which lends strong vertical lines and a sense of height even though the maximum ridge height is only 26′-0″.

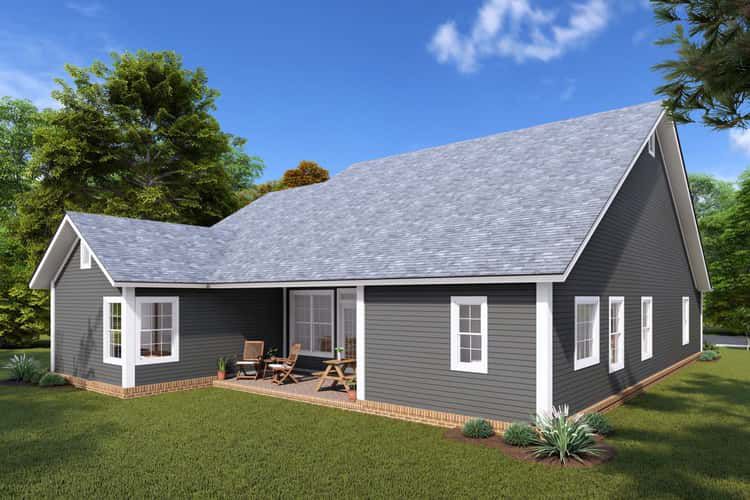

A welcoming front porch (132 sq ft) as well as a rear porch (121 sq ft) are included—both enhance curb appeal and create outdoor transition zones for relaxing or entertaining.
Construction details: exterior walls are 2×4 framing (with optional upgrade to 2×6) and foundation type is standard slab.
—
Interior Walk-through

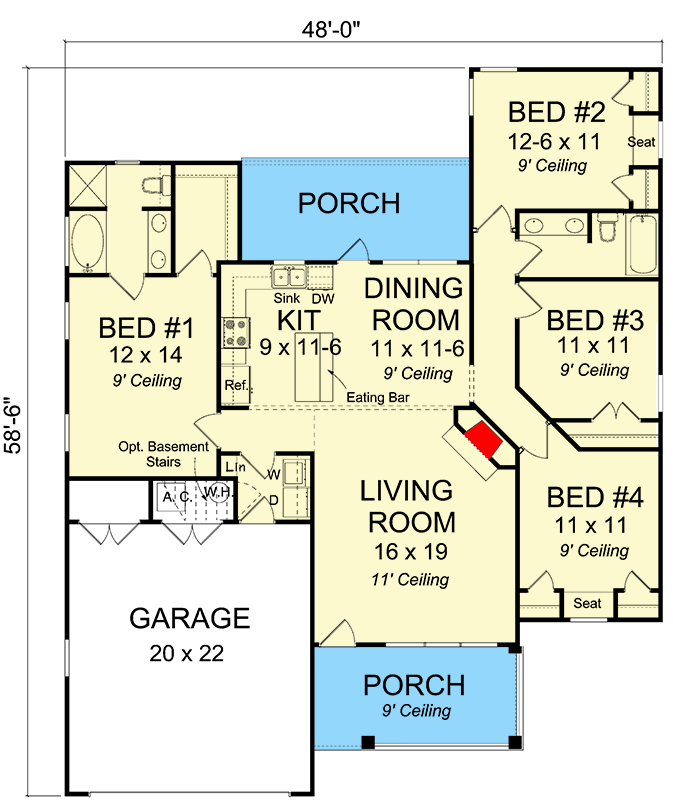

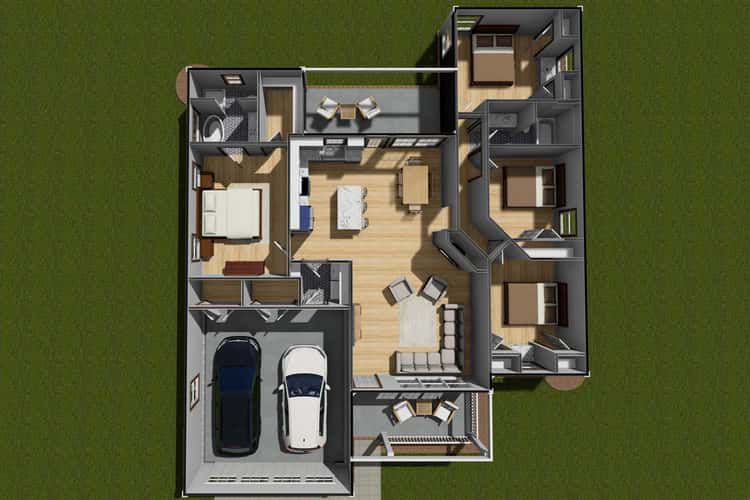

Entering the home you step into an open floor-plan layout. The main living area is designed with fluid flow: the living room, dining area and kitchen are visually and physically connected to maximise use of the compact footprint. The 9′-ceiling height throughout the first floor contributes to an airy feel.
On the left side of the home is the large master suite; it enjoys a sense of privacy and separation from the other bedrooms, which are located on the right side—this “split bedroom” layout is noted as a special feature.
The master suite likely includes its own bath and closet space (though the full detail isn’t in the snippet) while the remaining three bedrooms share a second full bath. Total bedrooms: 4; bathrooms: 2.
Laundry is located on the main level, which is convenient for everyday living.
—
Dimensions & General Specifications
Heated area: 1,571 sq ft (all on one level)
Width: 48′-0″ ; Depth: 58′-6″
Maximum ridge height: 26′-0″
Garage: Attached 2-car garage, front entry, area about 488 sq ft.
Ceiling height on the first floor: 9′ throughout.
—
Estimated Cost & Notes for Tanzania Context
While no exact build cost is given for this plan, in North American context houses of similar size and finish might range widely depending on materials and labour.
Local cost of construction per square metre (which typically differs greatly from U.S. cost per square foot).
Material import costs (if using imported finishes or fittings) and local availability.
Foundation type adaptation (slab may suit if soil conditions are favourable, but site-specific engineering is needed).
The plan’s narrow-lot optimisation works well when land width is constrained—as may be the case in urban or suburban Arusha plots.
Utilities and infrastructure (electrical, plumbing, HVAC) may require local adaptation.
As a rough ball-park estimate: if you assume a modest finish and local labour, you might budget perhaps USD 60–120 per square foot (i.e., 146 m²) that would range approx USD 9,000 to USD 18,000 (very rough) plus land, landscaping, external works, and any special finishes. Actual cost in Tanzania may differ (potentially lower in labour, possibly higher in imported finishes).
—
Suitability & Tips
Ideal for a narrow or modest-width lot thanks to the width being only 48′.
Single‐level living helps accessibility (good for families, ageing in place, etc.).
The split bedroom layout gives privacy to the master suite.
Two porches—front and rear—give good indoor/outdoor flow, which is beneficial in climates like Arusha’s where outdoor living is attractive.
Make sure to review local building codes, adjust roof pitch/ventilation for local climate, and ensure the plan’s slab foundation is suitable for your soil conditions.
Consider solar orientation: place key living spaces and porches to take advantage of prevailing breezes and shading.
Customisation: The plan allows for modification (as noted) so you can adjust materials, orientation, window sizes, etc.
