This smartly designed modern farmhouse plan offers 3,817 sq ft of heated living space, with four bedrooms, four full baths and one half bath, all on a single main floor plus a bonus level above the garage. The home width measures approx. 114′ 7″, depth approx. 84′ 8″, and the maximum ridge height is 30′ 9″. 1
Exterior & Site Features

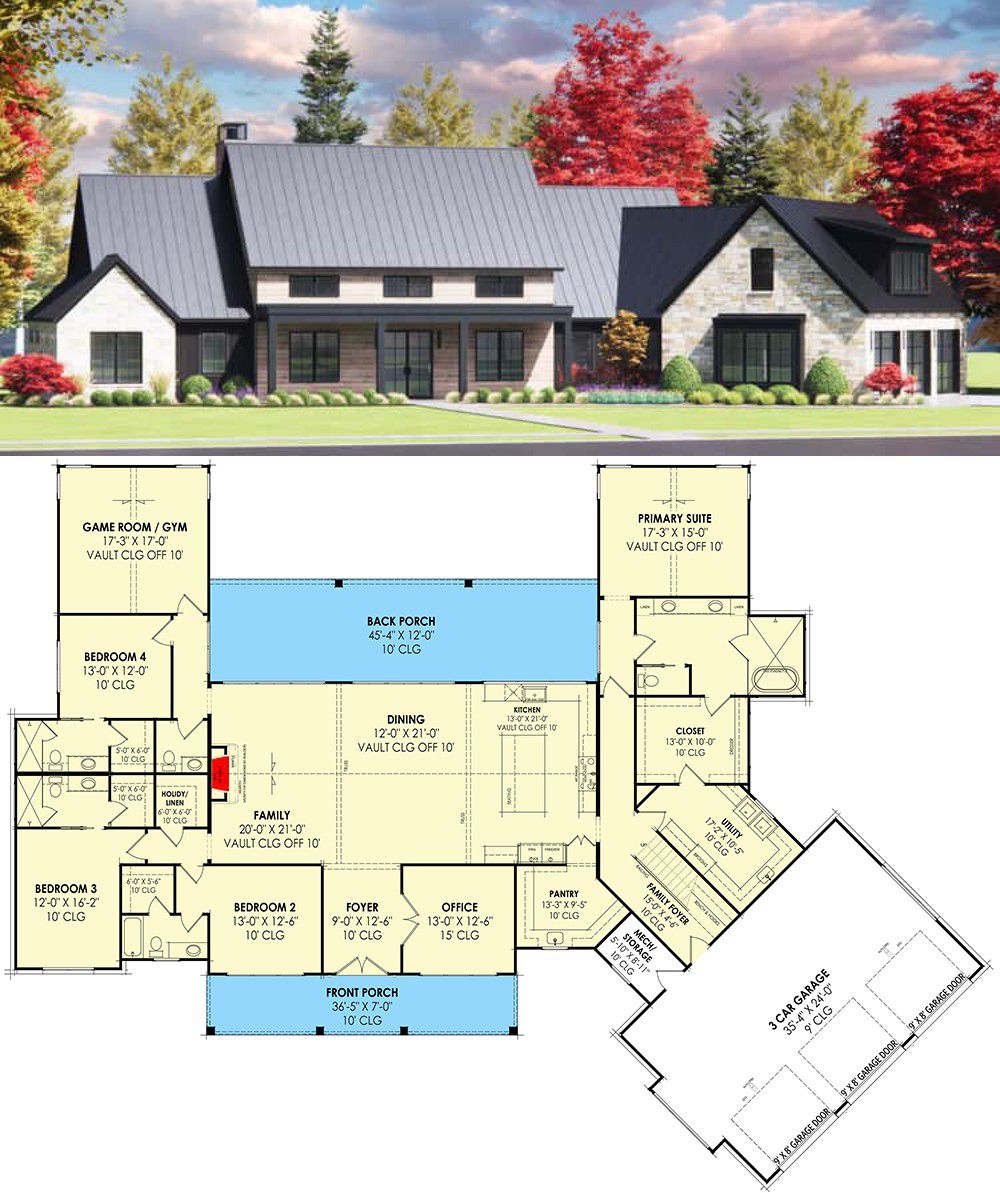

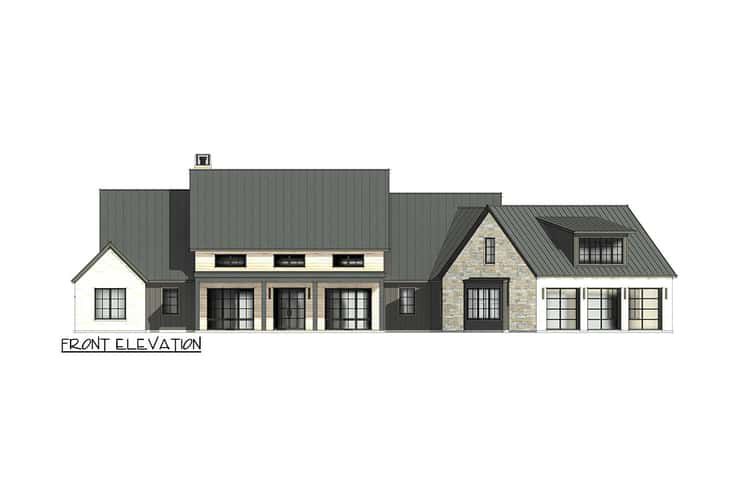

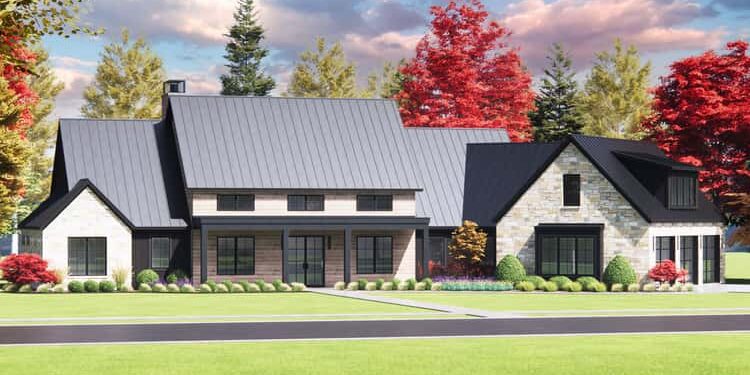

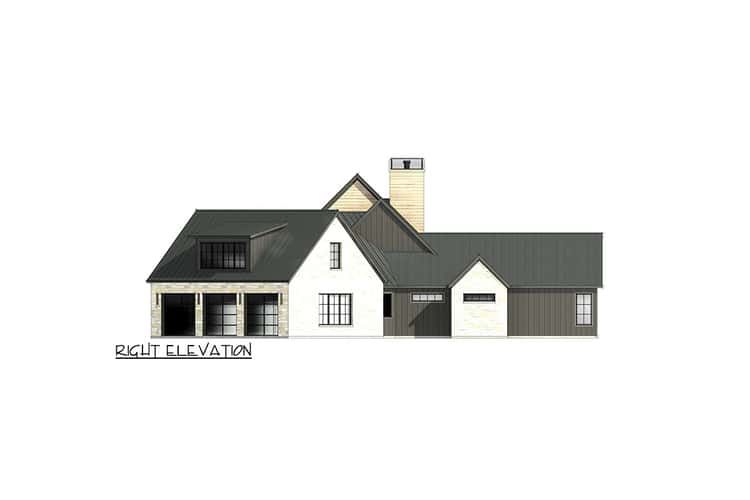

The exterior presents classic farmhouse elements blended with modern touches: a deep front porch (about 7′ deep) invites guests inside, French doors open into the foyer, and the facade is anchored by a prominently angled 3-car garage (about 967 sq ft) that protrudes from the home at a tasteful angle. 2

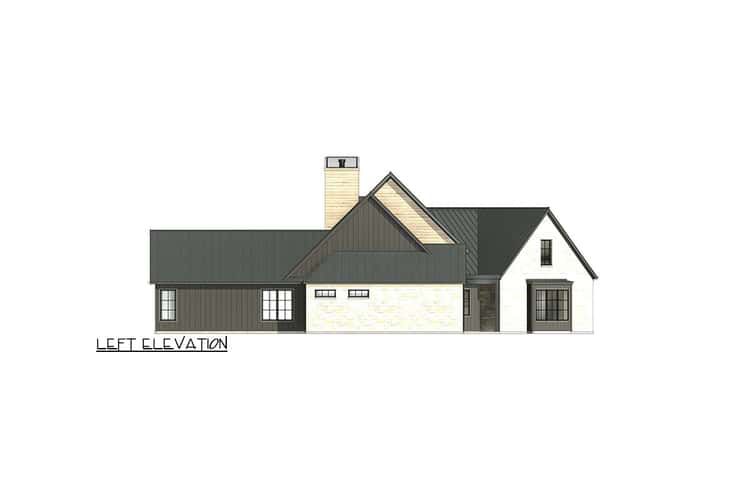

The roof carries a primary pitch of 12 on 12 and a secondary pitch of 3 on 12, lending height and character to the exterior. 3
Interior Walk-through

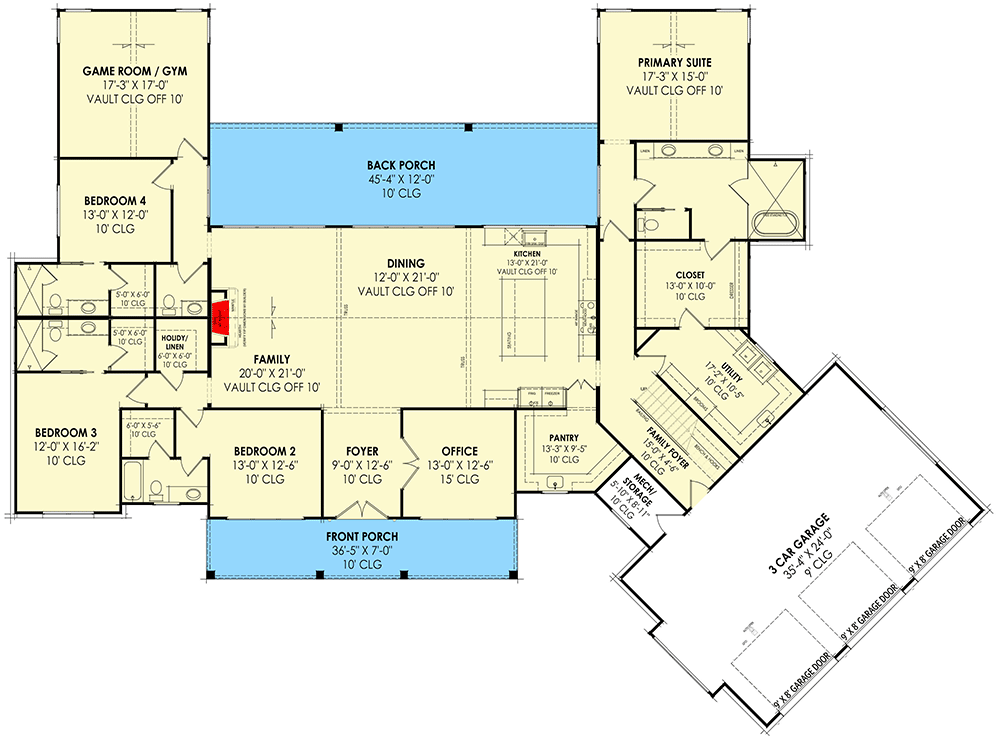

Upon entering through the front porch into the foyer you’re greeted by a vaulted space ahead, and to one side a home office. Moving forward you encounter the heart of the home: an open-concept layout that spans over 40′ of wall-free flow from the family room’s fireplace across to the kitchen. 4

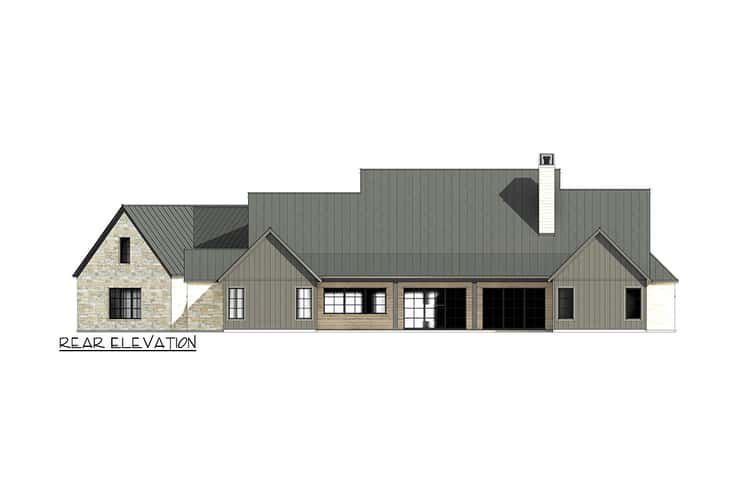

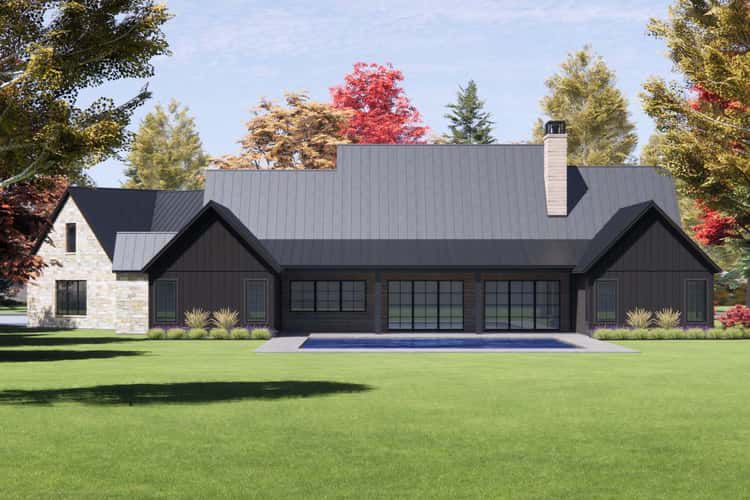

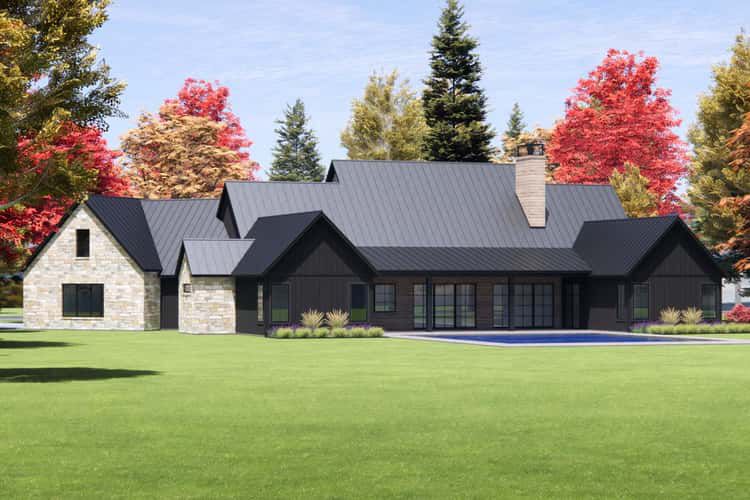

The kitchen features an oversized island with seating and workspace, and the sink is positioned beneath a window looking toward the backyard. A large walk-in pantry (butler style) offers added storage and prep space. On the back side of the home, a generous rear porch (approximately 544 sq ft) stretches outdoor living into the landscape. 5
The primary suite is located on the main level and is generous in scale: vaulted ceiling, deluxe ensuite bath, and a large closet that connects directly to the laundry room for convenience. 6
Across the home you’ll find three additional bedrooms—each with a walk-in closet and its own private bathroom—making this layout extremely comfortable for family or guests. A vaulted game/rec room offers a dedicated space for play or entertainment, tucked away from the main living zones. 7
Structural & Technical Details
- Foundation: Standard monolithic slab. 8
- Exterior walls: 2×4 construction by default, with optional upgrade to 2×6. 9
- Ceiling height on first floor: 10′. 10

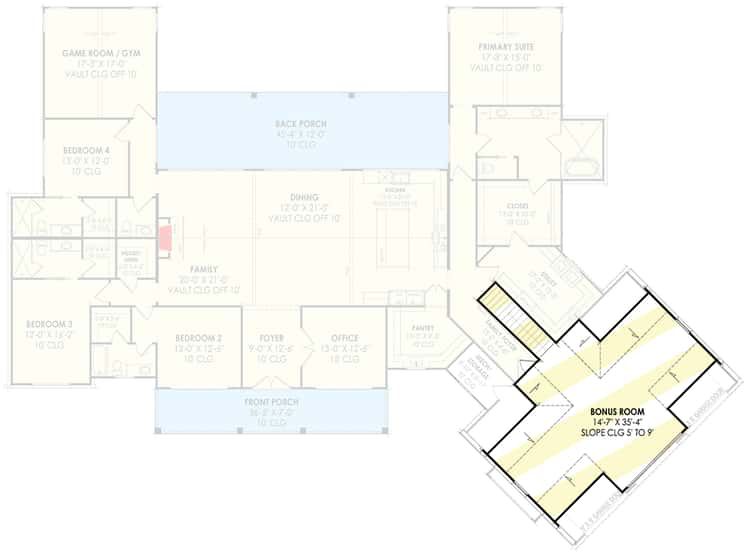

- Bonus level above the garage: approx. 667 sq ft of optionally finished space. 11
Dimensions & Area Summary
- Total heated area: 3,817 sq ft. 12
- Width: 114′ 7″. 13
- Depth: 84′ 8″. 14
- Garage area: 967 sq ft, 3-car attached, side entry. 15
- Front porch: 255 sq ft. Rear porch: 544 sq ft (total porch space approx. 799 sq ft). 16
Estimated Cost to Build
While actual costs depend on site conditions, materials, labour and regional factors, a rough estimate for a high-quality modern farmhouse of this size in a developed region might range from about USD 350 to USD 450 per square foot (including finishes) in 2025. At 3,817 sq ft this equates to approximately USD 1.3 million to USD 1.7 million. Adjustments would be needed for local labour/material costs in Tanzania or wherever the build site is.
Highlights & Why It Works
This plan combines modern open-plan living with classic farmhouse charm, giving you a home that feels both spacious and warm. The angled garage adds visual interest and convenience, while the bonus space above the garage provides flexibility for a media room, gym, or guest suite. The main-level layout keeps everything accessible, and the separation of bedrooms ensures privacy for everyone.
If your lot suits the width (114′ 7″) and depth (84′ 8″), and you want a home that is elegant yet comfortable, this modern farmhouse layout delivers big time.
